Winibo hydraulic steering 90 hp to 150 hp Complete
Winibo hydraulic steering 90 hp to 150 hp Complete
Our kits have everything you need to install. You will only need your tools no crimping involved. Quality Winibo brand sold Worldwide

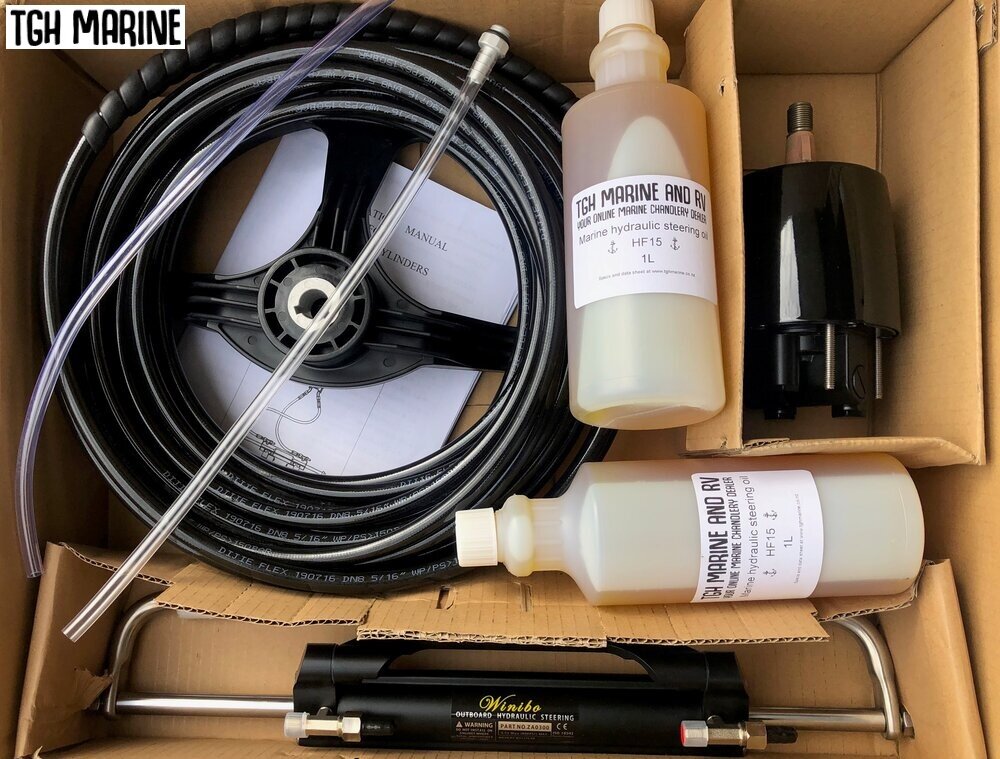

This kit contains the following:
Helm unit
Steering wheel
Hydraulic ram (front-mounted)
Hydraulic hose 8 Meter x 2
Helm fitting 45-degree x 2
Hydraulic fluid x 2 Litre
Purging hose
Filling hose kit
Instructions
Helm specifications:
Bore 31.8 mm
Piston rod diameter 16 mm
Plungers 7
Hard over to hard over 6.8 turns
Steering wheel diameter 320 to 540 mm
Hydraulic ram specifications:
18 cc
Volume 116.9 cc
Tube ID 31.8 mm
Rod OD 16 mm
Output force (kgf /cm2) 409.7
Stroke 197.3 MM
Max pressure (KGF/cm2) 69
Two year manufactures warranty backed by TGH Marine warranty
